ADView 2 Diagnostic Workstation
Overview
Introducing the New ADC® ADView® 2 Modular Diagnostic Station
ADC, a world leader in core diagnostic products for more than 30 years, has partnered with SunTech Medical®, the premier developer of innovative blood pressure technology, to create the next generation in modular diagnostics: The ADC ADView 2 Modular Diagnostic Station.

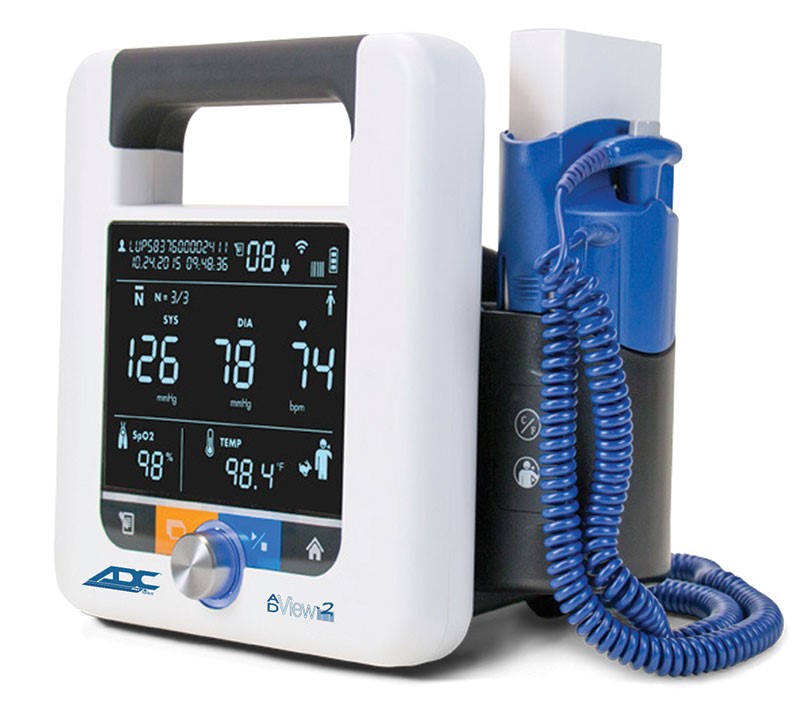

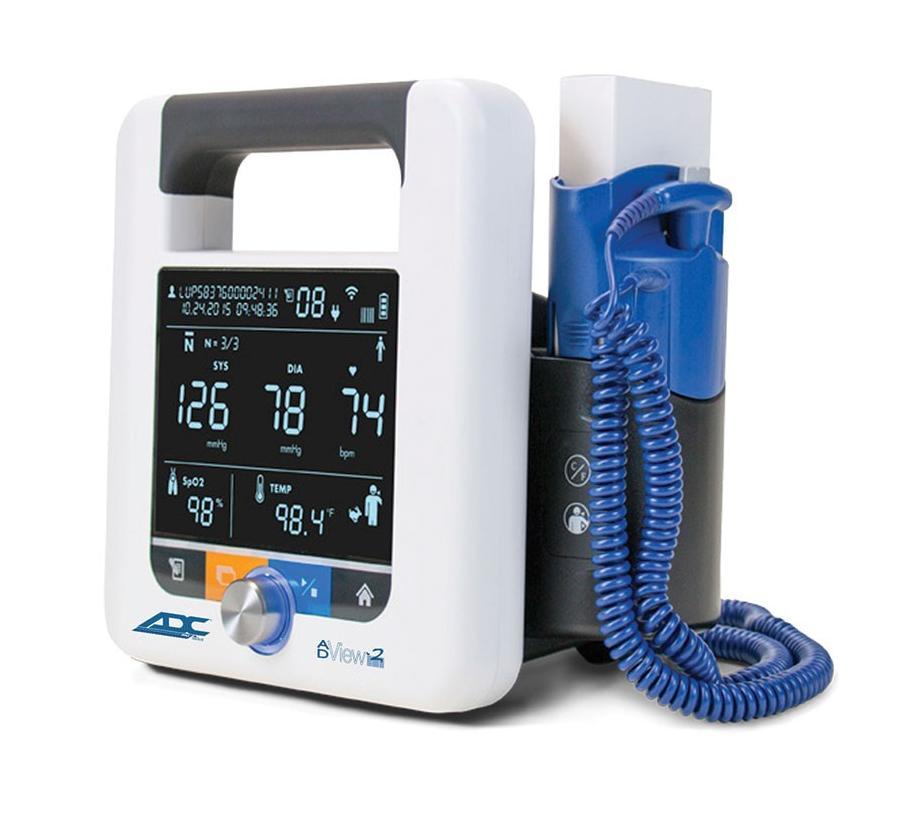

ADC® ADView® 2 Diagnostic Station Configurations
|

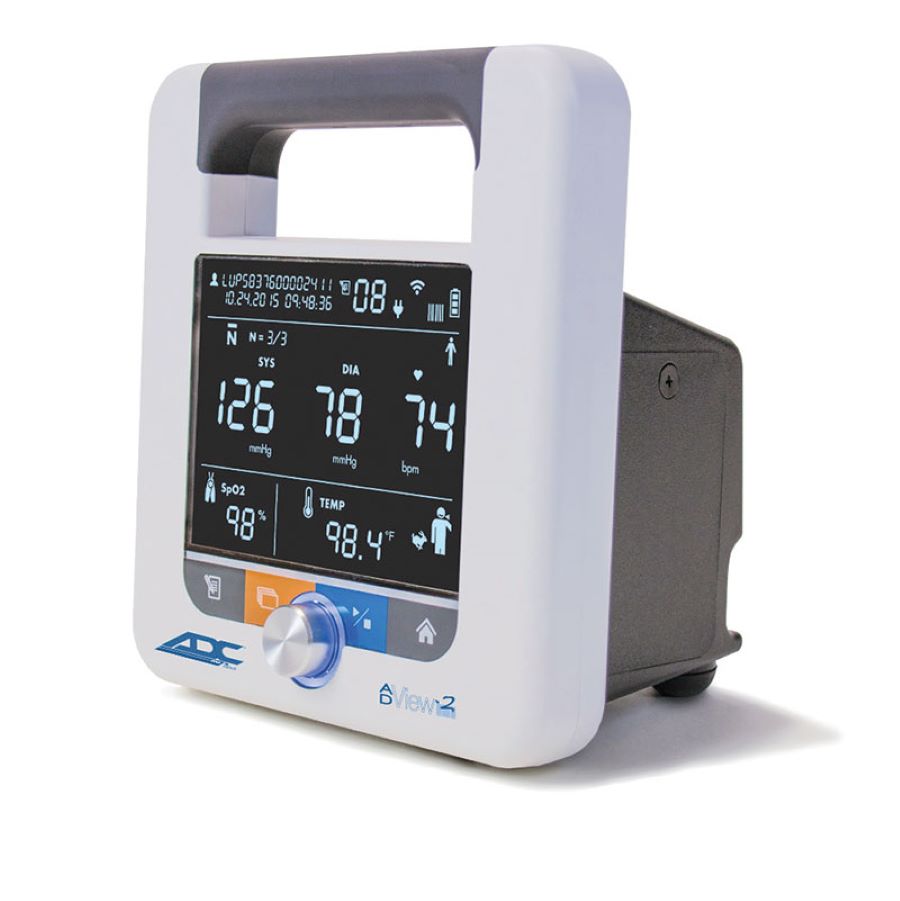

ADView 2 BP |
Blood pressure base unit |
|
|
ADView 2 BP/Temp |
Blood pressure base unit with temperature module |
|
|
ADView 2 BP/SpO2 |
Blood pressure base unit with ChipOx Nellcor-compatible SpO2 module |
|
|
ADView 2 BP/SpO2/Temp |
Blood pressure base unit with ChipOx Nellcor-compatible SpO2 module and temperature module |
|
|
ADView 2 BP/Masimo SET |
Blood pressure base unit with Masimo SET SpO2 module |
|
|
ADView 2 BP/Masimo SET/Temp |
Blood pressure base unit with Masimo SET SpO2 module and temperature module |
BP base unit includes: Rechargeable lithium-ion battery; U.S. power cord; 10-foot length of tubing; Adult Plus and Large Adult Plus cuffs; Mini-USB to USB Cable; Quick Reference Guide; Quickstart Guide.
Temperature module includes: Oral/axillary probe and well (blue) and box of 20 probe covers.
SpO2 module includes: Adult finger sensor and 8-foot extension cable.
Qualified Promotions through December 31, 2019 (only one applies per monitor):
With Purchase of BP Unit & two Modules: free 9005M Mobile Stand
With Purchase of BP Unit & one or more Modules: free 9005W Wall Mount
With Purchase of BP Unit with or without Modules: free 9005D Desk Caddy
- annotate your choice during checkout in notes
All the features you’ve loved, now even better.
- Clinical-grade Advantage™ BP technology from SunTech Medical
- Contemporary, compact design with an integrated handle and easy-to-read display
- Manual blood pressure mode for real-time verification
- Customizable average mode options
- Next-generation EMR ready with HL7 messaging for electronic data transfer
- Network enabled with built-in Ethernet or optional Wi-Fi
- Lithium-ion power for longer-lasting battery life and a lighter weight
- Built-in memory with up to 99 charting sessions
- New Pediatric Mode to ensure accurate measurements for younger patients
- Firmware upgradeable
The ADView 2 is still the only truly modular diagnostic station that grows with your needs. Start with blood pressure and choose temperature or pulse oximetry options at the time of purchase; we’ll ship your ADView 2 fully configured and ready to go. Or add new modules and accessories in the field, anytime, as you need them. Our user-expandable, connect-and-go construction makes upgrading effortless.
It All Begins with Blood Pressure
The ADC ADView 2 easily captures automated blood pressure measurements at the touch of a button. Our non-invasive blood pressure base unit module uses the oscillometric method, with both pulse rate and the mean arterial blood pressure (MAP*) displayed in about 30 seconds. With seven available cuff sizes, ranging from child to thigh, the ADView 2 can be used for patients ages three and older. Adult Plus and Large Adult Plus cuffs come standard.
*Not validated for use in the U.S
Manual mode option for added versatility
Our original ADView was the first diagnostic station to offer a manual mode. It was an innovation developed even earlier for our e-sphyg II, allowing you to capture blood pressure with your stethoscope using the traditional auscultatory method without changing cuffs. Manual mode provides important versatility for your patients with arrhythmias or other complex needs.
New, customizable averaging protocol.
With the ADView 2, we also offer a user-definable averaging mode, with setting options ranging from two to five readings as well as start and interval delays. Averaging is recognized as a key component of accurate blood pressure measurement and was used in the recent SPRINT trial conducted by the National Institute of Health.
Blood pressure base unit includes: Rechargeable lithium-ion battery; U.S. power cord; 10-foot length of tubing; Adult Plus and Large Adult Plus cuffs; Mini-USB to USB cable; Quick Start Guide; Quick Reference Guide.
Temperature Module
Add a Covidien Filac™ 3000 thermometry module to your ADView 2 for an oral or axillary temperature reading in as little as four seconds. The module features both Fahrenheit and Celsius scales, switchable with the touch of a button, a Cold Mode for lower ranges, and a built-in, color-coded storage well for the probe. An optional color-coded rectal chamber and probe is also available.
Temperature module includes Oral/axillary probe and well (blue) and a box of 20 probe covers.
Pulse Oximetry Module
Add a pulse oximetry module to your ADView 2 to measure oxygen saturation of arterial blood flow in about 10 seconds. The ChipOx Nellcor™-compatible SpO2 module displays pulse rate signal strength during measurement and comes with a reusable finger clip sensor and 8-foot cable. An optional pediatric/multi-site sensor is also available. Alternatively, choose the Masimo SET® SpO2 module upgrade.
SpO2 module includes an Adult finger sensor and an 8-foot extension cable.
Choose Now or Choose Later
The ADView 2 is still the only truly modular diagnostic station that grows with your needs. Choose temperature or pulse oximetry options at the time of purchase and we’ll ship your ADView 2 fully configured and ready to go. Or add new modules in the field, anytime, as you need them. Our user-expandable, connect-and-go construction makes upgrading effortless.
Mounting Options
- Desktop. The ADView 2 features a modern, compact design that’s self-standing for desktop or tabletop use. A built-in handle offers instant portability. Choose the optional desk caddy to keep cuffs and cords organized.

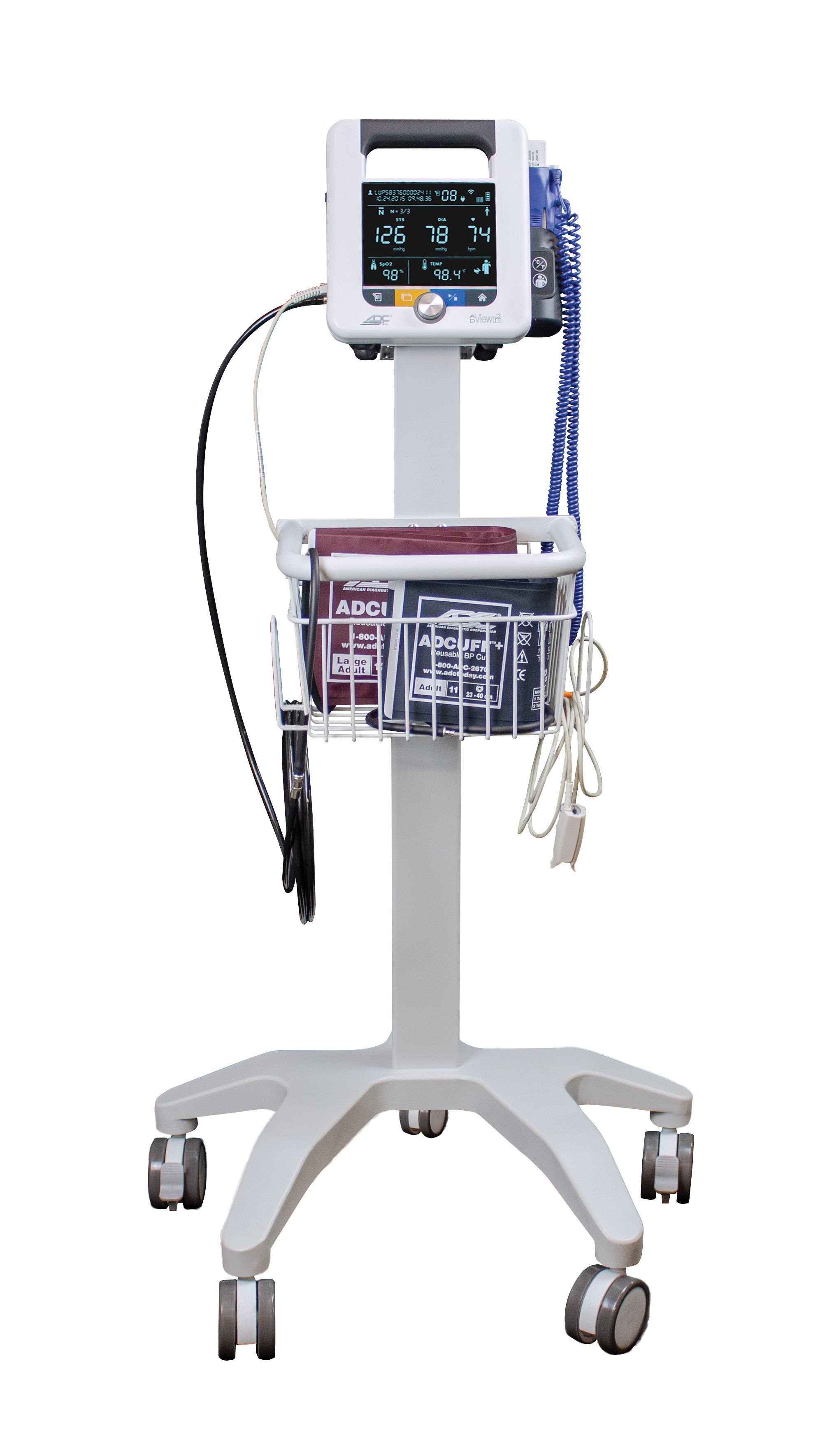

- Mobile. With our rugged, five-legged mobile stand, you can move the instrument from room to room for optimum workflow. The stand comes with an oversized basket for accessories and a quick reference card. Mounts for optional printer and scanner hardware are also available.

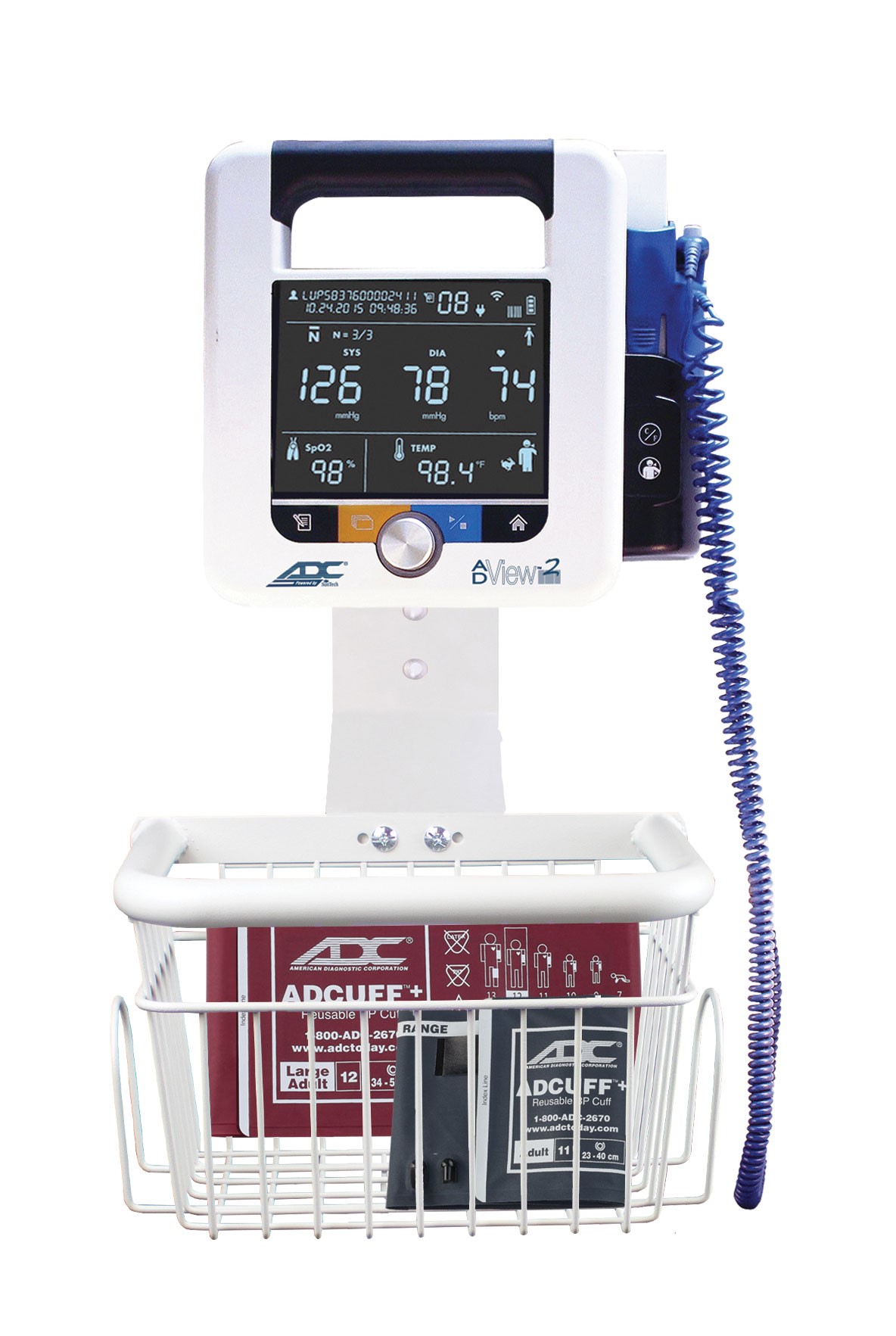

- Wall Mount. With our custom mounting plate, the ADView 2 can be easily mounted to the wall or an Adstation EENT system. The built-in basket keeps cuffs and cords organized.
Accessories
- Printer. An optional thermal printer can be connected to your ADView 2 using one of the unit’s two USB ports.
- Barcode Scanner. An optional barcode scanner, ideal for uploading patient IDs directly to your facility’s electronic medical records system, can be added to your ADView 2. The scanner connects via Wi-Fi using an optional USB dongle.
Networking and EMR Integration
The ADView 2 is network ready and can be connected through a built-in Ethernet port or by using the optional Wi-Fi dongle. The unit supports the IHE HL7 messaging standards for seamless integration of patient data with your existing EMR. Configure EMR connectivity during your initial configuration or at a later date using the Advanced Configuration Application.
- Integration Using the Optional Barcode Scanner. If your ADView 2 is configured with the optional barcode scanner, simply scan the patient ID. The ID is displayed at the top-left of the screen and remains attached to all measurements taken, saved in memory, or sent to your facility's EMR.
- Integration Using the Adviewer Software Solution. Alternatively, use our ADViewer middleware solution for saving and printing readings on your local network.
Advanced Configuration
While the ADView 2 Modular Diagnostic Station can be used out of the box without any additional programming, the device offers an Advanced Configuration Application where you can make changes to advanced settings, if necessary. Advanced Configuration is a web-server application that’s already inside the ADView 2. You'll need to download and install the following driver before connecting the first time. For more information, download the Advance Configuration Application Manual.

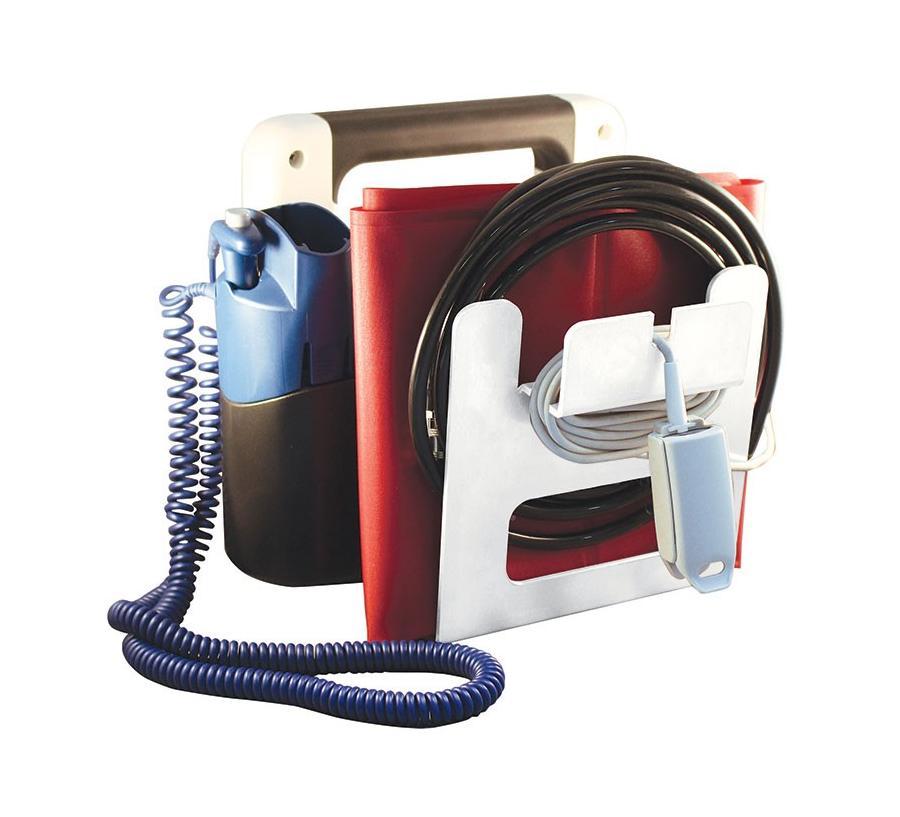

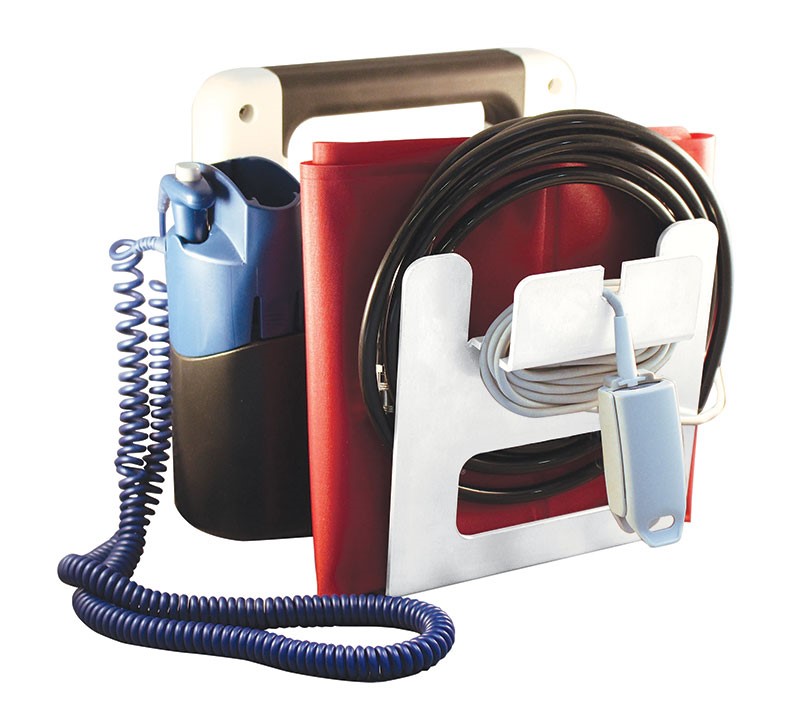

ADC ADView 2 Mounting Platforms
|
Desktop Caddy* |
Desktop caddy plate and hardware |
|
|

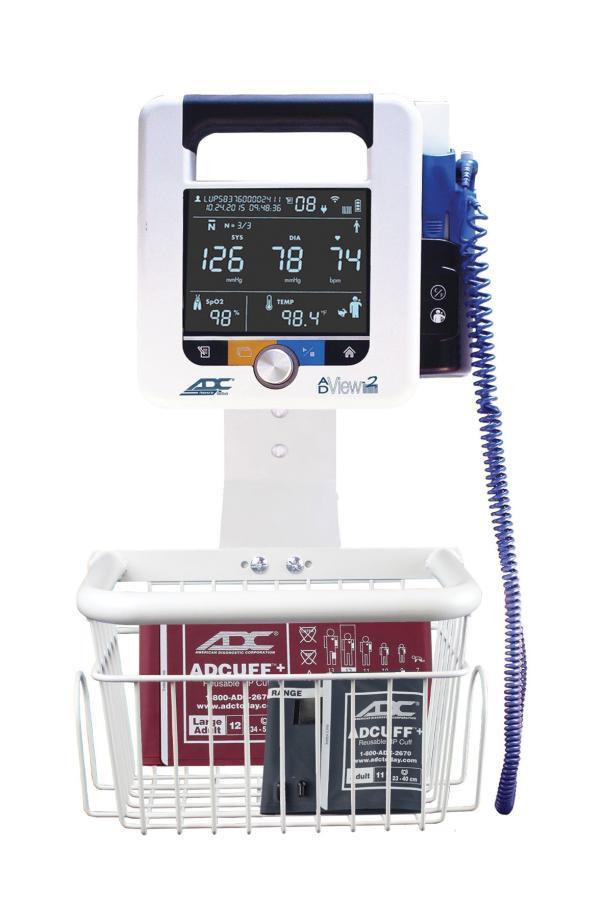

Wall Mount with Basket |
Wall mount plate and hardware with cuff/accessory storage basket |
|
|

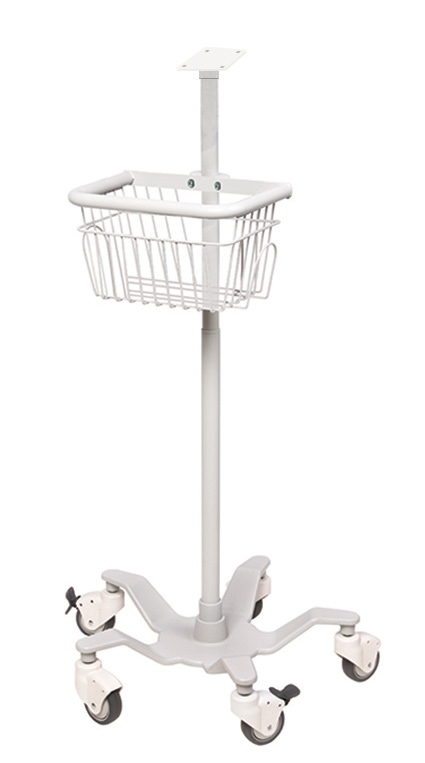

Mobile Stand with Basket |
Five-legged mobile stand and hardware with cuff/accessory basket |
*Desktop unit is self-standing. Optional desktop caddy helps keep cuffs and cords organized.
ADC ADView 2 Modules (When Sold Separately)
|
Temperature Module, Oral |
Temperature module with oral/axillary probe and well (blue) and box of 20 probe covers |
|
|
Temperature Module, Rectal |
Temperature module with rectal probe and well (red) and box of 20 probe covers |
|
|
SpO2 Module, ChipOx |
ChipOx Nellcor-compatible SpO2 module with reusable adult finger sensor and 8-foot cord |
|
|
SpO2 Module, Masimo SET |
Masimo SET SpO2 module with reusable adult finger sensor and cord |
ADC ADView 2 Networking and Hardware Accessories
|

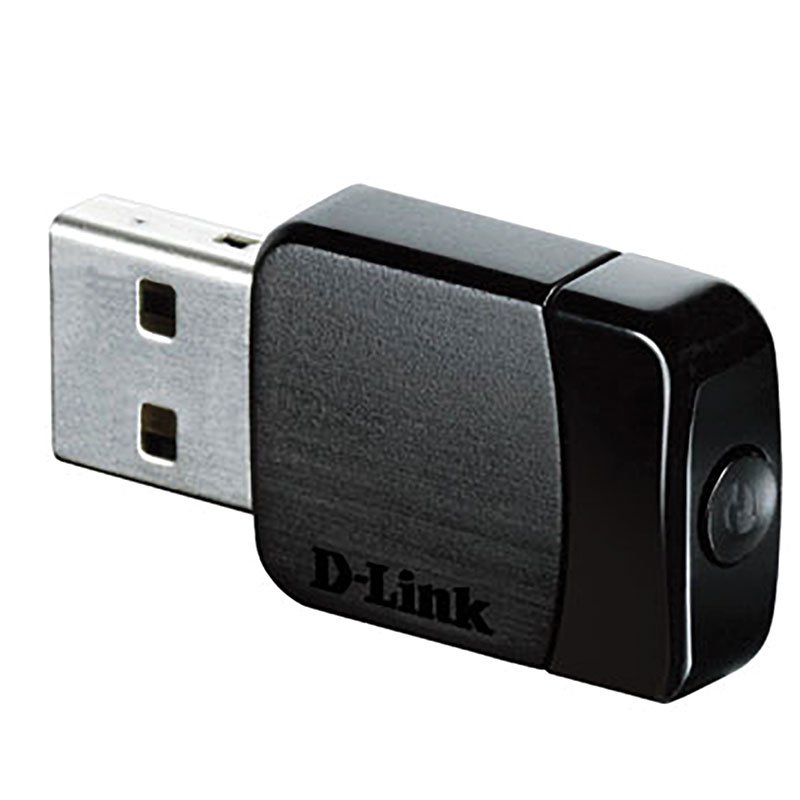

USB Wi-Fi Dongle |
Validated Wi-Fi dongle |
|
|
Printer with Paper |
Themal printer with paper and cable |
|
|
Printer Paper, 10 Rolls |
Ten rolls of paper for thermal printer |
|
|
Printer Shelf for Mobile Stand |
Printer shelf and hardware for mobile stand mounting |
|
|

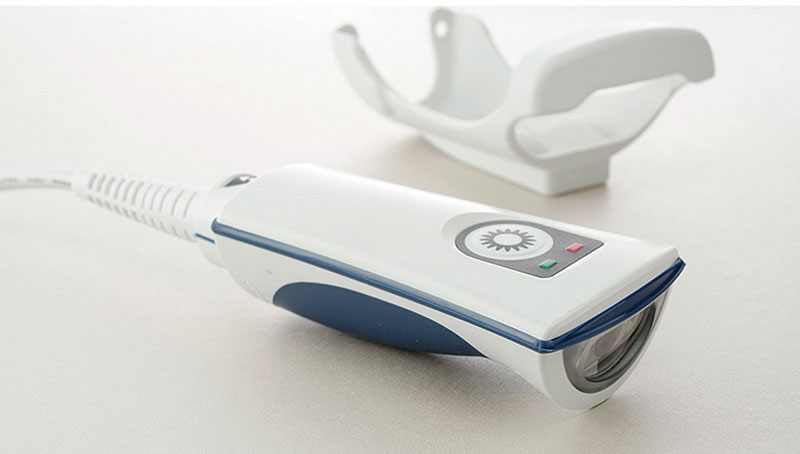

Barcode Scanner |
Barcode scanner with mobile stand mount and hardware |
ADC ADView 2 Cuff Options
|

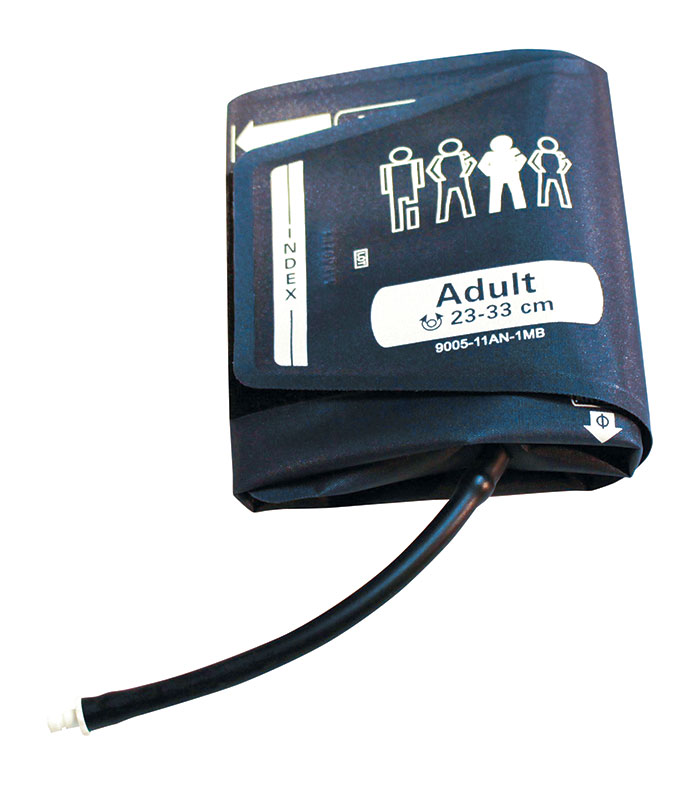

Adult, Navy |
Adult cuff, navy, with bayonet connector; limb range 23-33 cm |
|
|

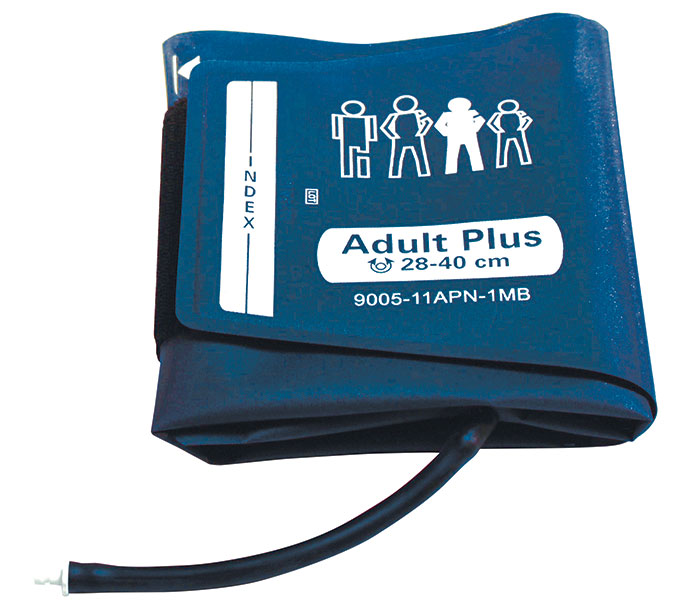

Adult Plus, Navy |
Adult Plus cuff, navy, with bayonet connector; limb range 28-40 cm |
|
|

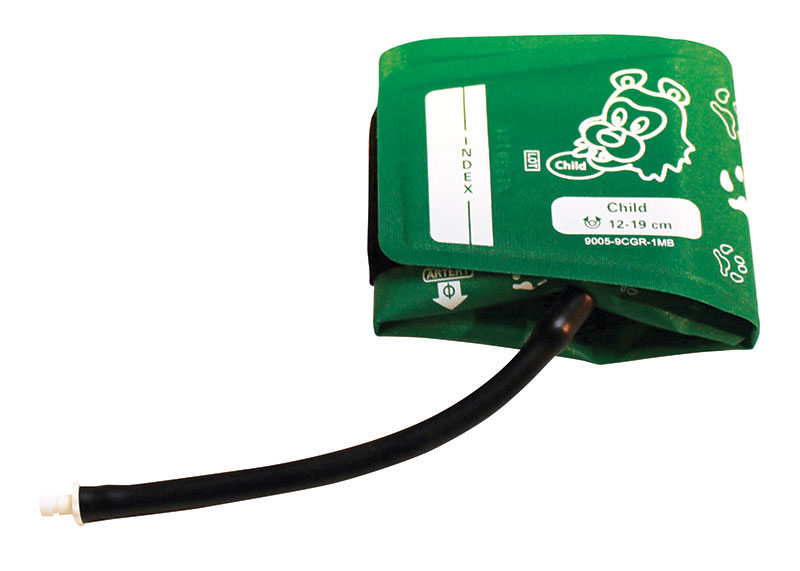

Child, Green |
Child cuff, green, with bayonet connector; limb range 12-19 cm |
|
|

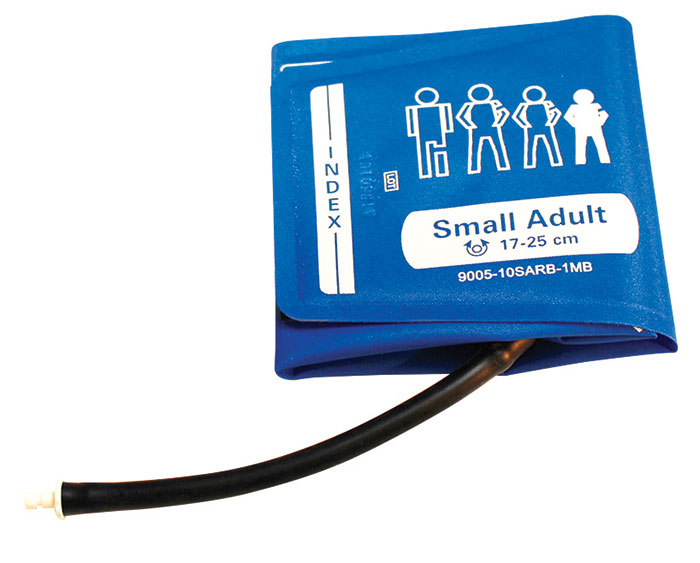

Small Adult, Royal Blue |
Small Adult cuff, royal blue, with bayonet connector; limb range 17-25 cm |
|
|

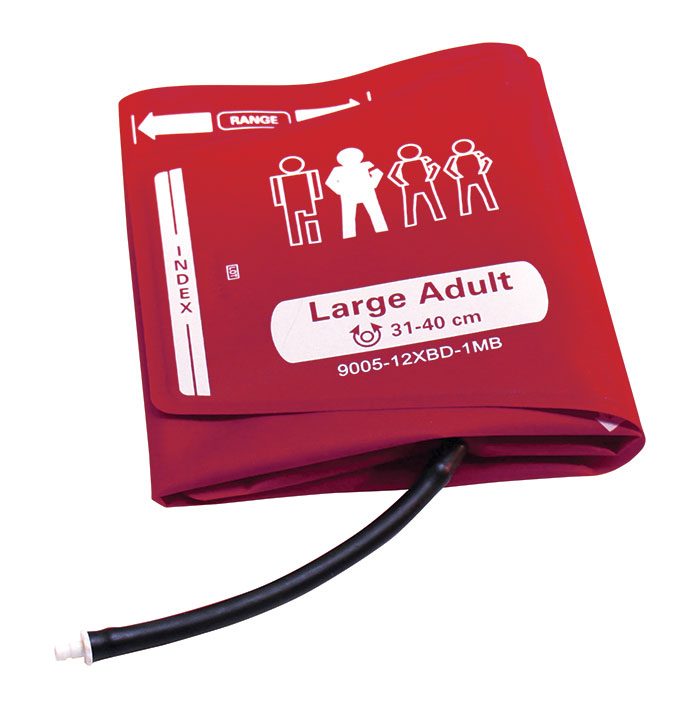

Large Adult, Burgundy |
Large Adult cuff, burgundy, with bayonet connector; limb range 31-40 cm |
|
|

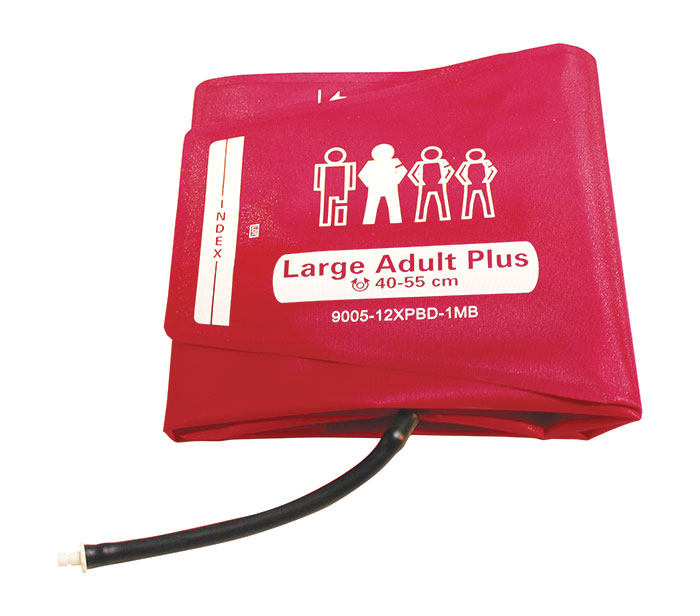

Large Adult Plus, Burgundy |
Large Adult Plus cuff, burgundy, with bayonet connector; limb range 40-55 cm |
|
|

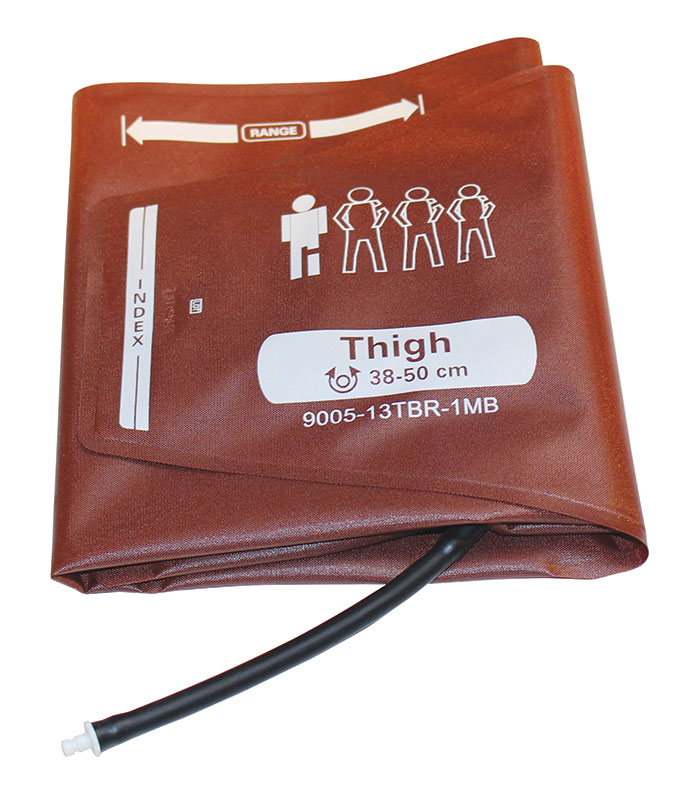

Thigh, Brown |
Thigh cuff, brown, with bayonet connector; limb range 38-50 cm |
|
|

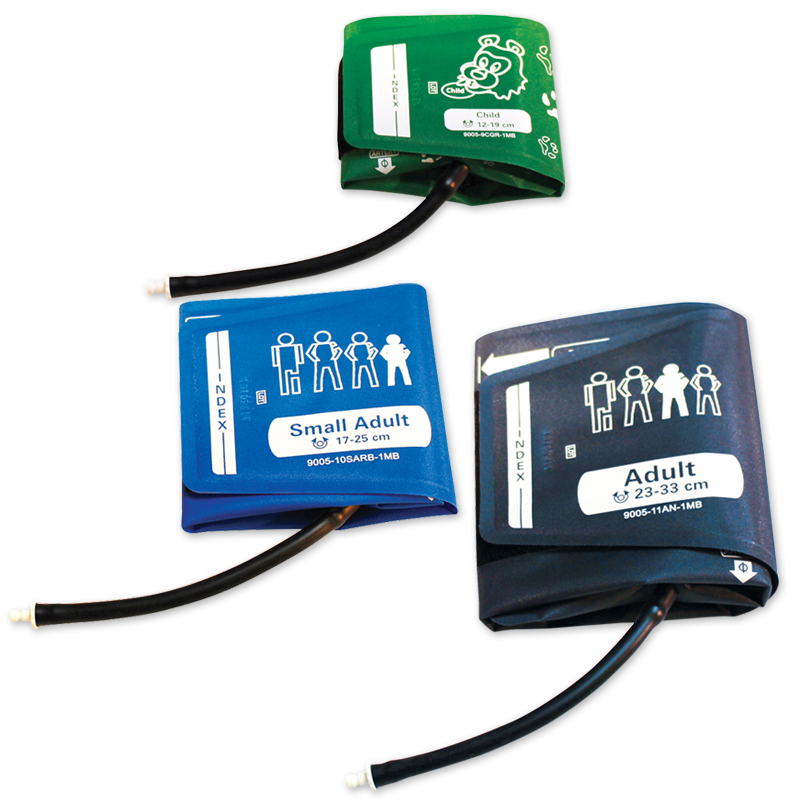

Pediatric Cuff Kit |
Includes Child, Small Adult, and Adult cuffs |
|
|

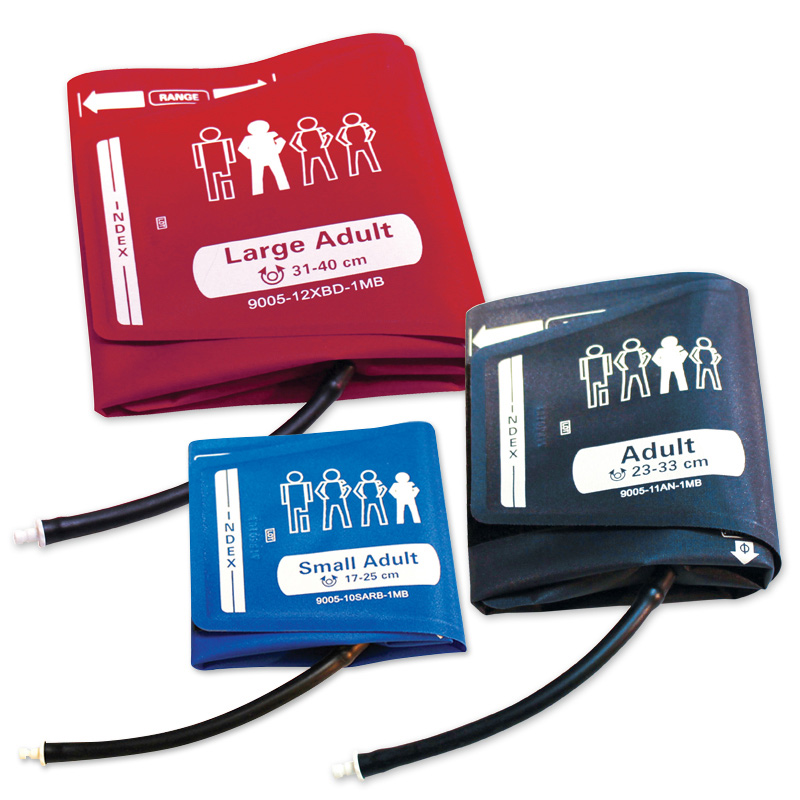

Adult Cuff Kit |
Includes Small Adult, Adult, and Large Adult cuffs |
|
|

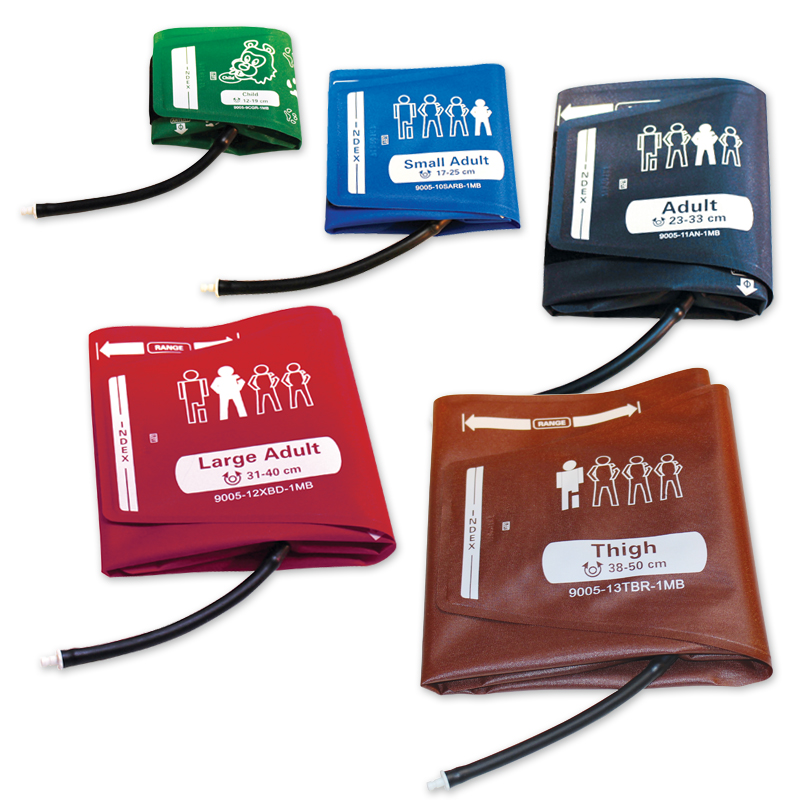

Complete Cuff Kit |
Includes Child, Small Adult, Adult, Large Adult, and Thigh cuffs |
All cuffs equipped with a male bayonet.
ADC ADView 2 Pulse Oximetry Accessories
|
SpO2 Finger Sensor, Adult |
Reusable finger sensor with 8-foot cable and DB-9M connector for adults and pediatrics >88 lbs (>40 kg); Nellcor-compatible sensor DS-100A |
|
|
SpO2 Finger Sensor, Pediatric/Multisite |
Single-use finger sensor with 18" (4.6 m) cable and DB-9M connector for pediatrics 22-110 lbs (10-50 kg), 24/box, foam; Nellcor-compatible sensor D-20 |
ADC ADView 2 Thermometry Accessories
(Covidien Filac™ 3000)
|
Thermometer Probe Covers (500) |
20 per box, 25 boxes per case |
|
|
Thermometer Probe Covers (5,000) |
20 per box, 25 boxes per tray, 10 trays per case |
|
|
Oral/Axillary Temperature Probe |
Oral/axillary (blue) probe with 9-foot (2.7 m) extended cord |
|
|
Oral/Axillary Temperature Well |
Rear piece of the temperature module that holds the oral/axillary probe and box of probe covers |
|
|
Oral/Axillary Temperature Kit |
Includes oral (blue) probe, oral (blue) well, and box of probe covers |
|
|
Rectal Temperature Probe |
Rectal (red) probe with 9-foot (2.7 m) extended cord |
|
|
Rectal Temperature Well |
Rear piece of the temperature module that holds the rectal probe and box of probe covers |
|
|
Rectal Temperature Kit |
Includes rectal (red) probe, rectal (red) well, and box of probe covers |
ADC ADView 2 Power Supply Accessories
|
Rechargeable Lithium-Ion Battery |
7.2V, 6600mAh internal lithium-ion battery |
|
|
Power Cord, U.S., 120VAC |
Power or mains lead with Type B, NEMA 5-15, three-pin plug, 8.2-foot (2.5 m) length |
|
|
Power Cord, Euro, 240VAC |
Power or mains lead with Type E and F hybrid, CEE 7/7, two-pin plug, 8.2-foot (2.5 m) length |
|
|
Power Cord, U.K., 240VAC |
Power or mains lead with Type G, BS1363, three-pin plug, 8.2-foot (2.5 m) length |
|
|
Power Cord, Australia, 120VAC |
Power or mains lead with Type C, IEC320, three-pin plug, 8.2-foot (2.5 m) length |
ADC ADView 2 Calibration Accessories
|
Y Test Kit |
Y tubing with inflation bulb, valve, and connectors |
|
|
Calibration plug for temperature module |
Calibration plug for testing of temperature module (Covidien part number 500099) |
Technical Specs
|
SpO2 |
|
|
Saturation Normal (no motion): |
70-100%Arms ± 2% |
|
Saturation Motion: |
N/A |
|
Low Perfusion: |
N/A |
|
Pulse Heart rate: |
20-300 BPM: ±3 BPM |
|
Pulse Heart rate w/motion: |
20-300 BPM: ±3 BPM |
|
Temperature |
|
|
Temperature Accuracy: |
Quick Mode (Oral): ± 0.3°C |
|
Temperature Accuracy: |
Std. Mode (Aux/Rectal): ± 0.1°C |
|
Temperature Accuracy: |
Direct Mode ± 0.1°C |
|
Response Time: |
4 sec (quick mode); 10-15 sec. (Axillary/Rectal); 60 sec.(direct mode) |
|
Resolution: |
0.1°C |
|
Blood Pressure |
|
|
Range: |
Pressure: Diastolic: 20-200 mmHg (adult), 20-160 mmHg (pediatric). |
|
Accuracy (BP): |
Meets or exceeds ANSI/AAMI/ISO 81060-2:2013 standard for non-invasive accuracy (±5mmHg mean error with 8mmHg standard deviation). |
|
General Specifications |
|
|
Conditions for Use: |
Operating: 10°C (50°F) to 40°C (104°F) 15 – 90% RH non-condensing - 700 kPa - 1060 kPa. It is up to the operator to determine if this temperature is too high based upon the condition of the patient and if so, to ensure the ambient temperature of the environment is 38°C or below. |
|
Storage: |
-20°C (-4°F) to 55°C (149°F) 15 – 90% RH non-condensing - 500 kPa - 1060 kPa. Performance can be affected if used or stored outside the specified temperature, humidity, or altitude listed in the ranges above. |
|
Power: |
Internal power supply. Input: 100-240 VAC @ 1.5A max, 50-60 Hz. Output +9VDC @ 5A IEC 320 type input connector. |
|
Battery: |
Type: 7.2v, 6600mAh Internal Lithium-Ion battery Run Time (full charge): ~20 hrs* / 200 BP cycles Charge Time: ~6 hrs @ 23deg Celsius +/- 2deg *Unit with BP, Temp, SpO2, Wi-Fi, barcode scanner |
|
Calibration: |
The accuracy of cuff -pressure transducers/indicators should be verified bi-annually. |
|
Safety Systems: |
Independent hardware over-pressure circuit and redundant software overpressure algorithm to limit cuff pressure to less than 300 mmHg (+20/-10mmHg). Independent hardware timing circuit and redundant software timer algorithm to limit the duration of a blood pressure cycle to less than 180 seconds. |
|
Dimensions: |
Size (without thermometer option): 8” H x 6.75’’ W x 5.2’’ D or 215mm H x 190mm W x 140mm D |
|
Standards: |
ANSI/AAMI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012, EN 60601-1:2006/A1:2013, IEC 60601-1-2: 2007 EMC, IEC 80601-2-30: 2013, ISO 80601-2-61: 2011, ISO 15223-1:2012, ISO 10993-1, 2009, ISO 10993-5, 2009, EN ISO 10993-10, 2010, ISO 81060-2:2013, EN 50419: 2006, EN ISO 14971:2009, CSA C22.2 No. 60601-1, EN ISO 81060-1: 2012, IEC 60601-1-6: 2013 |
|
Classifications: |
Equipment Classification: Class IIa per MDD, Class I (Electrical Shock), Continuous mode of operation, CE |
|
Ingress of liquid: |
Ingress Protection: IPX1: This device is protected against harmful effects of dripping water per IEC 60529. |
|
Limited Warranty |
|
|
Main unit: |
3 years |
|
Blood Pressure Cuffs: |
2 years |
|
Battery: |
1 year |
|
Accessories (SpO2 sensors, |
90 days |
|
|
|
