ndd Medical, 2500-2A, Easy One Air Diagnostic, Spirometry System Spirometry

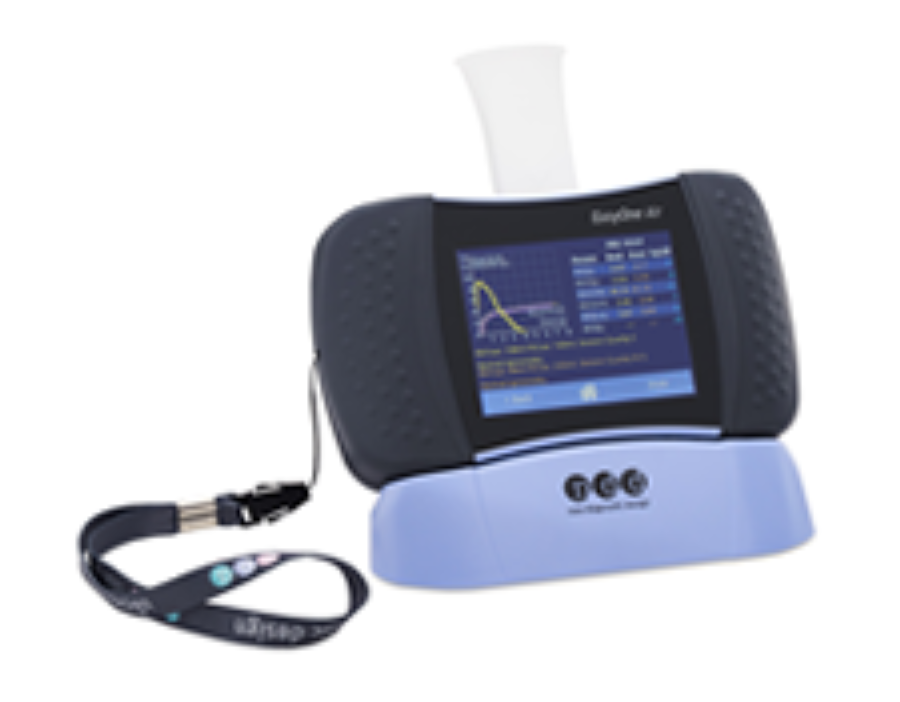

EasyOne Air Spirometer

Manufacturer: ndd Medical

Product ID: NDD-2500-2A

$2,173.50

Overview

ndd Medical: EasyOne Air 2500-2A

ndd Medical: EasyOne Air Diagnostic Spirometry System Includes Diagnostic Spirometer with Cradle, Software, Bluetooth Dongle, & 3-Year Warranty. No calibration required.

EasyOne^®Air is a flexible, accurate and proven spirometry solution designed for healthcare providers large and small. Utilizing TrueFlow™ technology, this portable spirometer delivers reliable results without the need for calibration to ensure lifetime worry-free operation. Thanks to the vivid color touch screen, it is easy to navigate, view real-time results and enter data.

Flexible Use, Consistent Results

EasyOne^®Air can be used as a portable or as a PC spirometer. It delivers consistent results regardless of setting or environmental factors.
Calibration-free TrueFlow™ Technology

Utilizing high-quality components and Swiss precision-engineering, TrueFlow™ delivers robust and reliable testing results without needing calibration.

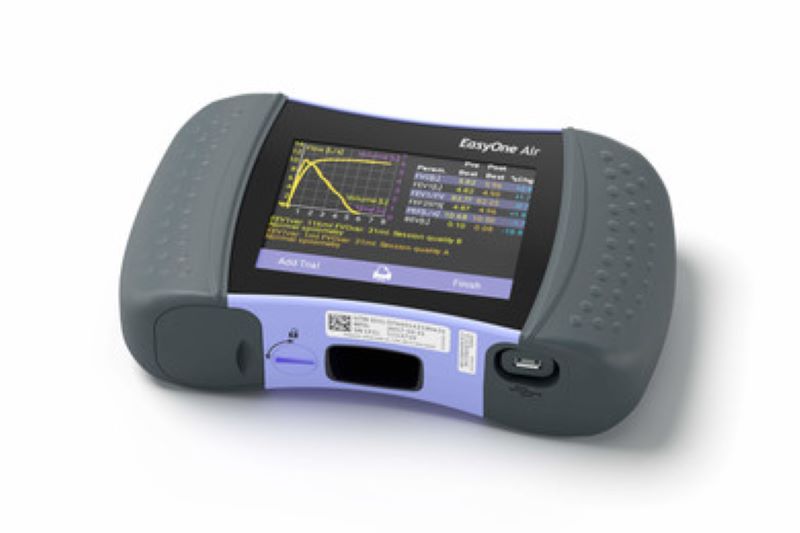

Color Touch Screen

View real-time graphs, quickly enter patient data and easily navigate with the high resolution color touch screen in the EasyOne^®Air.
Bluetooth and EMR Connectivity

Easily connect to PC for real-time patient incentives, data exchange and EMR connectivity.

Details EasyOne^® Air

Ready to Take on Any Challenge

Regardless of location, environment or number of tests you will perform, EasyOne® Air will exceed your expectations.

Reliable design tried and tested at large screening events
Extremely robust TrueFlow™ measurement technology
Performs up to 100 complete tests with one battery charge
Proven completely calibration-free device

Choose Between Portable Mode and PC Mode

Use EasyOne® Air in portable mode, where the data is stored and the graph is displayed directly on the device, or use it in PC mode for more options.

Portable or PC mode
Stable Bluetooth connection
Real-time curve display
Real-time data transfer

Connectivity to Printers, PCs and EMR

Easily integrate EasyOne® Air into your existing clinical workflow. The device is equipped with Bluetooth and USB modules making connections to printers, a central database and EMR systems extremely easy and stable.

Directly connect printers via USB or print via EasyOne Connect
Synchronize data via USB or Bluetooth
Integrate into all major EMR/EHR systems via HL7, XML, GDT, or API
Reference projects to all major EMR systems available on request

Powered by EasyOne Connect - NDD's Integrated Software Platform

Start using EasyOne Air in combination with EasyOne Connect software for central data review and handling, as well as access to more advanced PFT software functionality. Features include:

Powerful commenter functionality
Encouraging pediatric incentives
Custom provocation protocols
Import external PFT data

For more information, please visit the EasyOne Connect product page.

Powerful EMR EHR Integration Engine

EasyOne Connect software includes powerful EMR EHR interoperability and IT management functionality for streamlined workflows. Features include:

Proven EMR integrations
Supports integration standards - HL7, XML, API, GDT, etc.
Active directory integration
SQL Server database

For more information, please visit the EMR EHR interoperability solutions page.

Direct Print Solution

EasyOne Air offers the unique option to print out test results directly without the need of a PC. A large variety of printers is supported and can be used without further installation. This makes the EasyOne Air one of the most mobile spirometry devices on the market.

Print from a PC through EasyOne Connect or connect your printer directly via USB cable
You can use EasyOne Air with both thermal printers and printers for ordinary paper
Printers must support at least one of the following printer languages / formats: Direct PDF, Postscript, HP PCL 3 Enhanced protocol or HP PCL3GUI (Firmware ≥ V1.10.0)

Please check out the application note about printing with EasyOne Air.

Infection Control

NDD inline filter solutions provide additional COVID-19 protection for those who wish to include a filter when performing tests. Filter options ensure reliable “double protection” from infection:

The filter keeps the ambient environment clean for technicians and patients
The FlowTube protects the flow sensor from contamination
Fully passes 24 Waveform tests as required by the ATS/ERS standard
Available for all testing environments where filters are required

Avoid cross-contamination and reduce cleaning to an absolute minimum:

All parts exposed to the patient's breath are single-patient-use
No sensor contamination possible
Only simple surface cleaning required of the device
No humidity can enter the device
No special storage conditions required for single-patient use FlowTubes and adapters

Visit our COVID-19 Infection Control page for more information.

Customized Reports

Customize reports and chose the parameters to be displayed.

Choose graphs to be displayed
Color reports for better visibility
Arrange graphs and parameters through EasyOne Connect
Choose between Z-score, % predicted and LLN through EasyOne Connect

QC-Grading and Result Interpretation

Get automatic quality grading and interpretation based on NLHEP and ATS/ERS with the EasyOne® Air.

Quality grades based on NLHEP and ATS/ERS 2005 and 2019 for all tests
ATS/ERS interpretation
GOLD/Hardie, NICE, JRS and NLHEP

Cyber Security Protection for IT and Patient Information

Protect your patient information. EasyOne® Air is a modern system designed to fulfill your cyber security needs.

Encrypted database
User authentication with automatic log off
User permission levels
FDA Approval in 2017 with cyber security documentation

Worldwide Compliance with Standards

Stay compliant with ATS/ERS standards and specific country regulations.

Fully conformant to ATS/ERS 2005 and 2019 and ISO standards
Worldwide approvals
CE Approval
FDA Approval

Click here for a complete list of NDD certificates.

TrueFlow™ - Trusted Ultrasound Technology

Stop worrying about calibration or accuracy of flow measurements. TrueFlow™ is the only ultrasound technology proven to be accurate for a lifetime for flow and volume measurements.

Proven long-term stability
Contact and resistance-free measurement
Excellent accuracy and robustness
Patented technology

To review case studies and additional information about our proven technology, please click here.

Large Selection of Predicted Sets (%Pred, Z-score and LLN)

The first in line for newly published predicted values: EasyOne® devices are used in predicted studies worldwide (e.g. LUNOKID, ALAT).

%Pred, Z-score, LLN
GLI (Stanojevic 2009, Quanjer 2012)
NHANES III (North America)
PLATINO (South America)
ERS (Europe) and JRS, IP, Chhabra (Asia)

The EasyOne Air uses the patented ndd Flow Tube, a single-patient-use mouthpiece which ensures that no contamination can reach the internal flow path of the device. This means that no cleaning is required between patients, and no calibration, ever. Simply dispose of the Flow Tube after each test session. Order model number 5050 flow tubes (box of 50 or 200).
.
CLICK HERE To View EasyOne Air Brochure

CLICK HERE To View EasyOne Air Diagnostic Report
