Cardiovit AT-102 G2 EKG with Interpretation || Item # 0A.108000
Schiller Cardiovit AT-102 G2 ECG with Interpretation — Item # 0A.108000

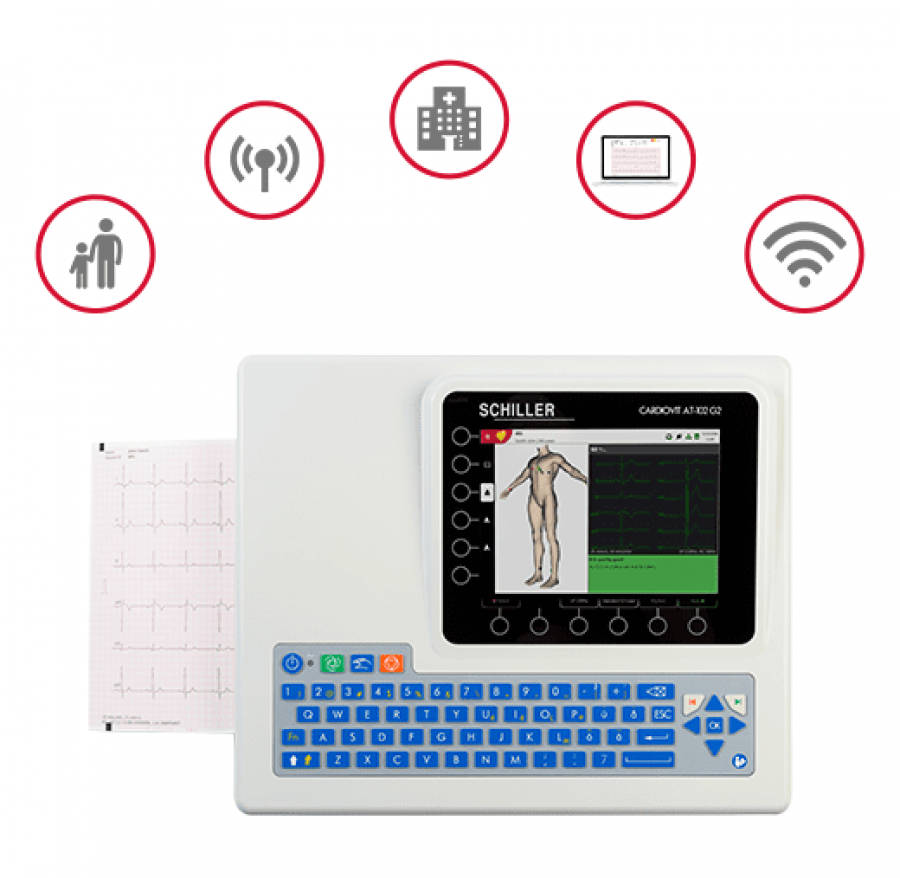

The Schiller CARDIOVIT AT-102 G2 represents the next generation of resting ECG technology — combining state-of-the-art acquisition quality, lightning-fast operation, effortless ease of use, and seamless bidirectional Wi-Fi connectivity in one elegant, high-performance platform. Designed for GPs, clinics, and hospitals, the AT-102 G2 delivers reliability, efficiency, and exceptional signal quality that sets a new standard for resting ECG in any clinical environment.
Highest Acquisition Quality
The AT-102 G2 achieves the highest acquisition quality in its class with a 32,000 Hz sampling rate, enabling real-time atrial fibrillation detection with exceptional accuracy. The high bandwidth of 250 Hz allows the capture of highest-quality ECG data from neonates and pediatric patients. At the same time, the automatic interpretation engine provides reliable, validated analysis for both children and adults.
Fast & Easy — ECG in 3 Minutes

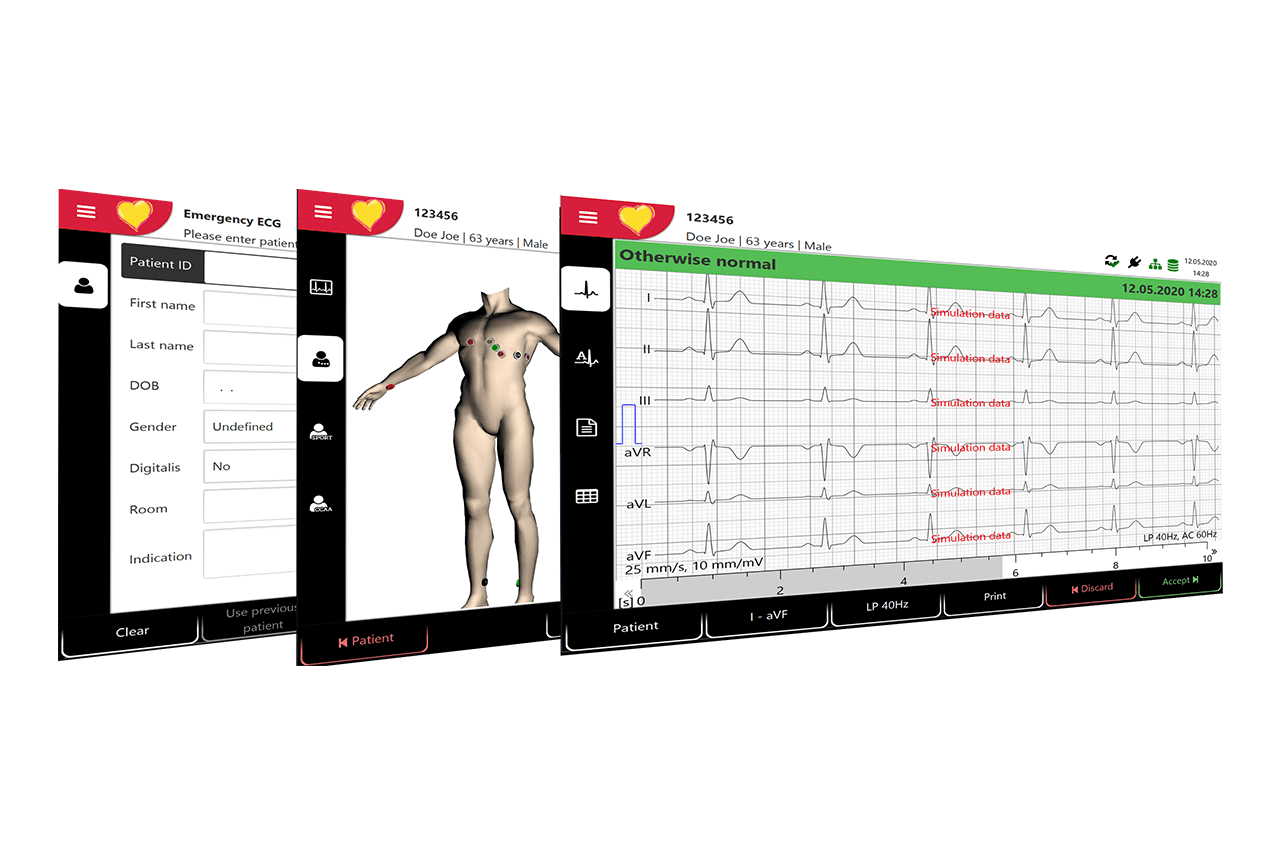

The unique easy 1-2-3 step workflow and innovative 3D model feature make performing an ECG faster and more accurate than ever before. The 3D model updates in real time to guide the user with proper lead placement — detecting connection mistakes and preventing lead reversals before the acquisition begins. From preparation to PDF in just 3 minutes, the AT-102 G2 maximizes clinical throughput without compromising quality.
Resting Rhythm Up to 10 Minutes
The AT-102 G2 revolutionizes resting rhythm recording by capturing up to 10 minutes of continuous patient data — providing physicians with the most comprehensive resting rhythm information available to support the best possible diagnostic outcome. No other resting ECG on the market offers this feature.
Multiple Connectivity & Export Options

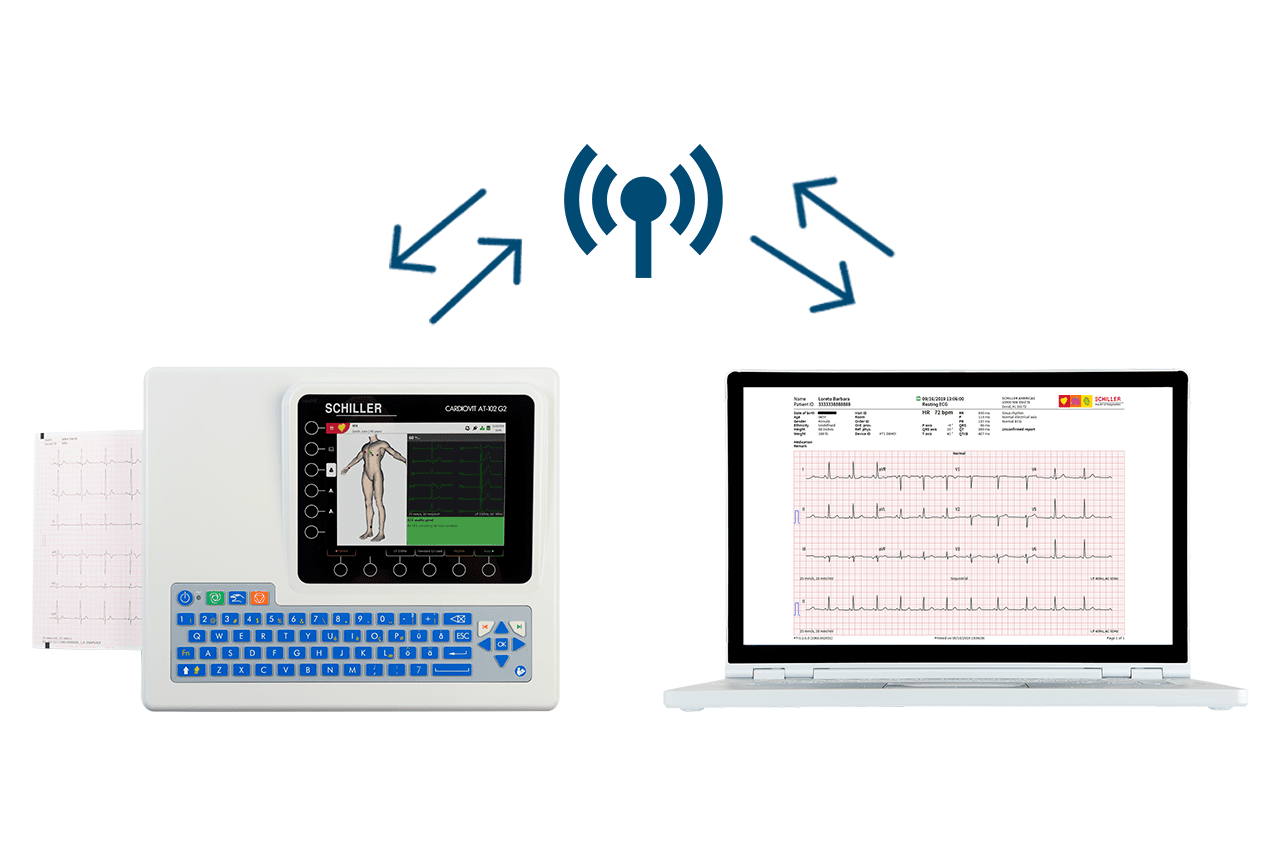

Seamless bidirectional connectivity supports a completely paperless ECG workflow — saving time and reducing documentation burden. The AT-102 G2 adapts perfectly to any existing network with flexible options to acquire, print, save, and transmit ECG data:
- Bidirectional Ethernet and Wi-Fi for automatic transmission to PDF or EMR systems
- DICOM and HL7 support for PACS system connectivity and Worklist/Patient Information Query
- Full 12-lead thermal printer for practices that prefer printed reports
- PDF export for fast, universal report sharing
Key Features:
- 32,000 Hz sampling rate for highest acquisition quality and real AFib detection
- 250 Hz bandwidth for high-quality neonatal and pediatric ECG acquisition
- Automatic ECG interpretation for adults and children
- Unique 1-2-3 step workflow — ECG from preparation to PDF in 3 minutes
- Real-time 3D model for proper lead placement guidance and lead reversal prevention
- Resting rhythm recording up to 10 minutes — unmatched in the resting ECG market
- Bidirectional Wi-Fi and Ethernet connectivity
- PDF and EMR automatic transmission
- DICOM and HL7 support for PACS and Worklist integration
- Built-in thermal printer for full 12-lead printed reports
- Supports paperless workflow for improved clinical efficiency
- Ideal for GPs, clinics, and hospitals
- Suitable for neonates, pediatric, and adult patients
Please contact us for complete specifications, EMR integration options, and accessory availability.
