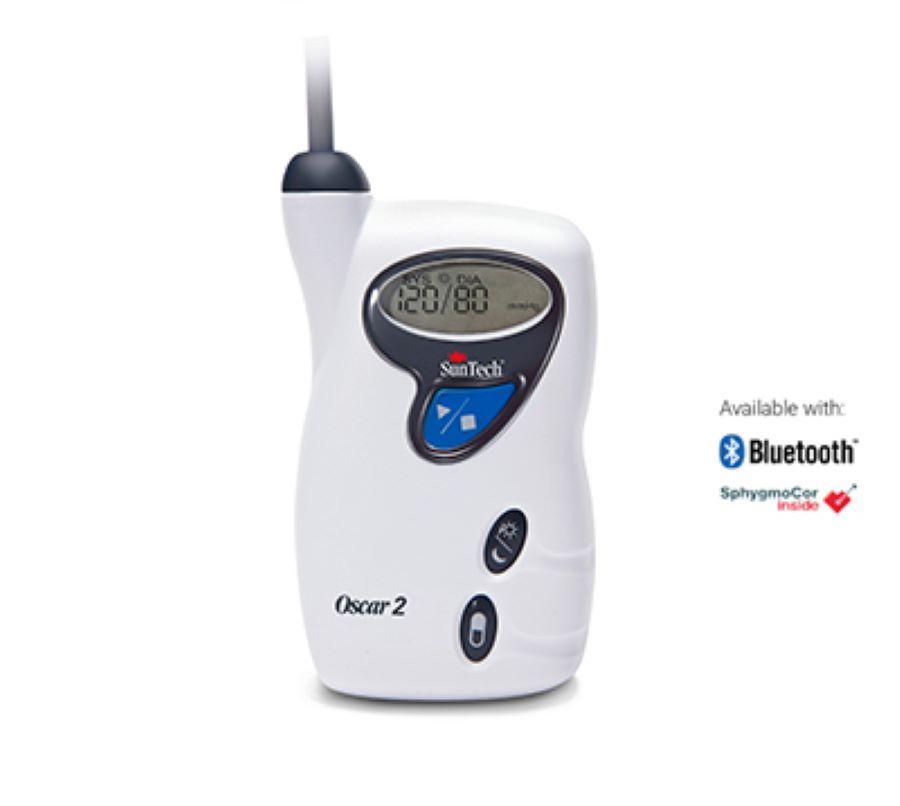

SunTech Medical Oscar 2 System Ambulatory Blood Pressure Monitor for adult and pediatric use (3 years and older) includes PC software (Accu Win Pro), patient cable, pouch, belt, shoulder strap, #2 adult & #3 adult plus cuffs || Model # 99-0133-00

Description:

Providing accurate and reliable blood pressure day and night Ambulatory Blood Pressure Monitoring (ABPM) is considered the gold standard for measuring blood pressure by clinicians worldwide. It provides valuable diagnostic information that in-clinic and home blood pressure monitoring systems are incapable of measuring including:

BP variability and a more accurate estimation of true blood pressure

Overnight changes in blood pressure (dipper status)

Morning surges in blood pressure

For adult and pediatric use (children older than 3 years old)

Options include: Bluetooth connectivity, AtCor's SphygmoCor Central Pressure Technology, Power Pack Accessory Kit (rechargeable batteries & charger), and other various sizes of blood pressure cuffs

True24 Patient Mobile App: available at no charge when downloaded (requires Bluetooth option)

In general, ABPM is recognized in the medical community as a valuable tool for supporting the management of appropriate pharmacologic treatment as well as the assessment of:

“White coat” hypertension, when elevated blood pressure measurements are recorded in the physician's office environment while blood pressure readings outside the physician’s office are within a normal range

Resistant hypertension, when multiple anti-hypertensive medications fail to adequately control high blood pressure

Masked hypertension, when in-office measurements fall within an acceptable range, but the mean blood pressure is actually above the acceptable range

Hypotensive symptoms with hypertensive medications

The diagnostic test begins with fitting a patient with a portable monitor and BP cuff. The patient leaves and returns the next day. Over this period of time, the monitor takes measurements periodically as programmed by the clinician, generally each 15-30 minutes during awake hours and 30-45 minutes during sleeping hours. When the patient returns, these measurements are transferred to a computer where they can be easily viewed and documented in a report using the enclosed AccuWin Pro™ software. The results of ambulatory blood pressure testing provide the most comprehensive representation of a patient’s complete blood pressure profile.

Patient comfort The Oscar 2 and the Orbit™ BP cuff make patient comfort a priority. The SunTech Medical, Inc. patented Orbit cuff uses an innovative stretch-sleeve design to maintain cuff placement and promote patient comfort. The Oscar 2 is a light, compact monitor that uses motion tolerant algorithms to reduce re-inflates and failed readings.

The auto-intelligent inflation pressure also reduces measurement time, promoting patient comfort by controlling cuff inflation.

Practical interpretive analysis and reporting tools AccuWin Pro™ optional software is a user-friendly tool allowing maximum flexibility for configuring, analyzing, interpreting, and reporting of ABPM studies.

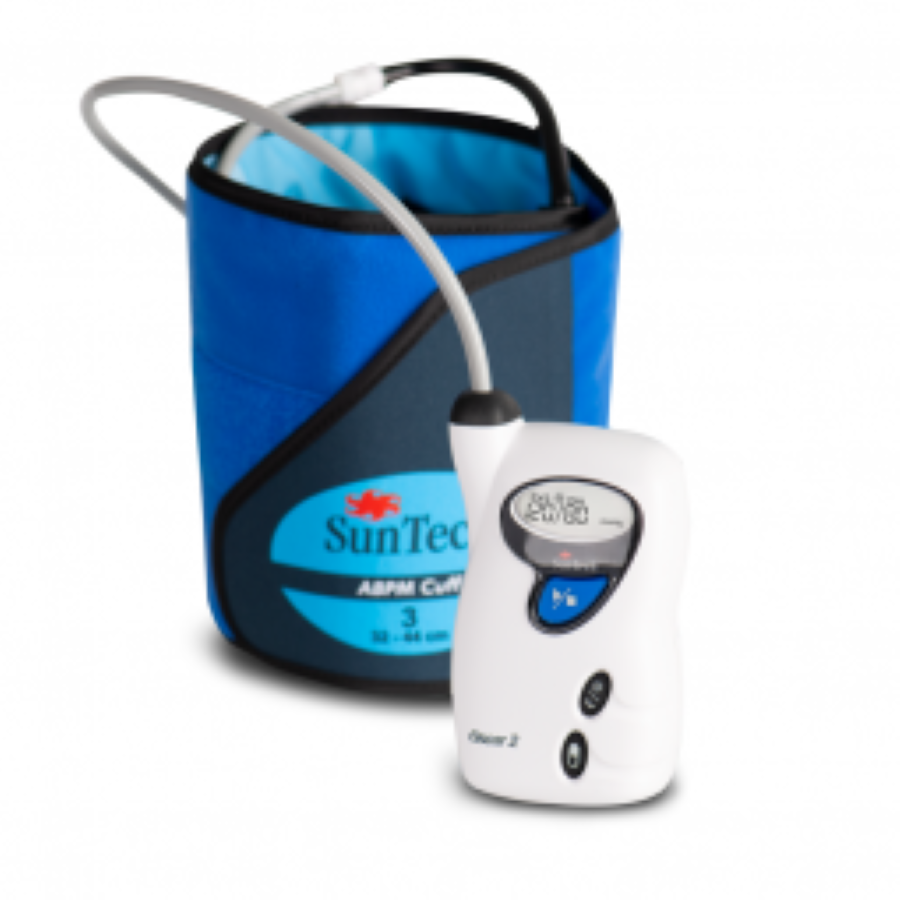

The Oscar 2 system includes: Oscar 2 ABP monitor AccuWin Pro CD 2 Orbit ABP cuffs: Adult and Adult Plus Carrying pouch and patient belt USB

The new standard in ambulatory blood pressure monitoring The Oscar 2™ system from SunTech Medical® sets the standard in ABPM by meeting the highest clinical standards, optimizing patient comfort through innovation, and giving clinicians practical interpretive analysis and reporting tools.PC interface cable User Guide Standard 2-year warranty.

Validations for the Oscar 250 (Oscar 2 ABP):

Clinical Evaluation of the Oscar2, Model 250, in accordance with the ANSI/AAMI/ISO 81060-2:2013 in the Adult & Pediatric Populations: November 2015

Clinical Evaluation of Oscar2, Model 250, in accordance with the ANSI/AAMI/ISO 81060-2:2013 Ergometry Ambulatory Monitoring: April 2016

Clinical Evaluation of Oscar 2 ABPM in accordance with the AAMI SP10:2002/A1:2003 Adult & Pediatric Population: September 2008

Clinical Evaluation of the OSCAR 2 Non-Invasive Oscillometric Blood Pressure Monitor in accordance with the AAMI SP10: Fall of 1999

VALIDATION OF THE OSCAR 2 OSCILLOMETRIC 24 HOUR AMBULATORY BLOOD PRESSURE MONITOR ACCORDING TO THE ESH INTERNATIONAL PROTOCOL FOR THE VALIDATION OF BLOOD PRESSURE MEASURING DEVICES:  February 2004

VALIDATION OF THE OSCAR 2 OSCILLOMETRIC 24 HOUR AMBULATORY BLOOD PRESSURE MONITOR ACCORDING TO THE BRITISH HYPERTENSION SOCIETY PROTOCOL

Oscar 2 System Monitor Configurations Available:

Description Item Number Oscar 2 Monitor - Standard 99-0133-00 Oscar 2 Monitor - Bluetooth 99-0133-01 Oscar 2 Monitor - w/ SphygmoCor Inside 99-0133-02 Oscar 2 Monitor - w/ SphygmoCor Inside - Bluetooth 99-0133-03 Oscar 2™ PowerPack Accessory Kit 98-0056-00

Orbit ABPM BP Cuffs

Description Item Number #1 Orbit™ ABPM Cuff (18-26 cm) 98-0239-01 #2 Orbit™ ABPM Cuff (26–34 cm) 98-0239-02 #3 Orbit™ ABPM Cuff (32–44 cm) 98-0239-03 #4 Orbit™ ABPMCuff (42–55 cm) 98-0239-04

Straps & Belts

Description Item Number Oscar 2™ Pouch 98-0032-07 Oscar 2™ Belt 98-0037-00

Extended Warranty Program

Description Item Number One Year Extended Warranty 99-0027-00 Three Years Extended Warranty 99-0027-03

Extended Warranty Terms and Conditions

The Extended Warranty must be purchased either:

At the time of the original sale

Prior to the end of the initial warranty period

Prior to the end of the purchased extended warranty period

True24 App for Bluetooth Systems

Available in the Apple App Store

PowerPack Accessories Kit

Includes 1-year extended warranty, NIMH rechargeable batteries (4 AA), battery charger, #1 small adult and #4 large adult cuffs

Technical Specs

Specifications Values Validations: BHS (A/A), ESH, ANSI/AAMI SP10:2002 BP Technique: Oscillometry with step deflation BP Range: 25-260 mmHg HR Range: 40-200 bpm Sampling Periods: 3 adjustable (awake, asleep, and special) Time Intervals: 5, 10, 15, 20, 30, 45, 60, 90 and 120 min. Event Key: Program to allow additional patient readings Data Storage: Flash memory stores up to 250 readings Power Source: Two AA batteries Weight: 284 grams, including batteries Dimensions: 12 x 7 x 3 cm PC Requirements: USB port, Windows® XP or later App Requirements: Apple iPhone

CLICK HERE To View Oscar 2 Brochure

CLICK HERE To View Central BP Brochure

CLICK HERE To View Patient Instruction
